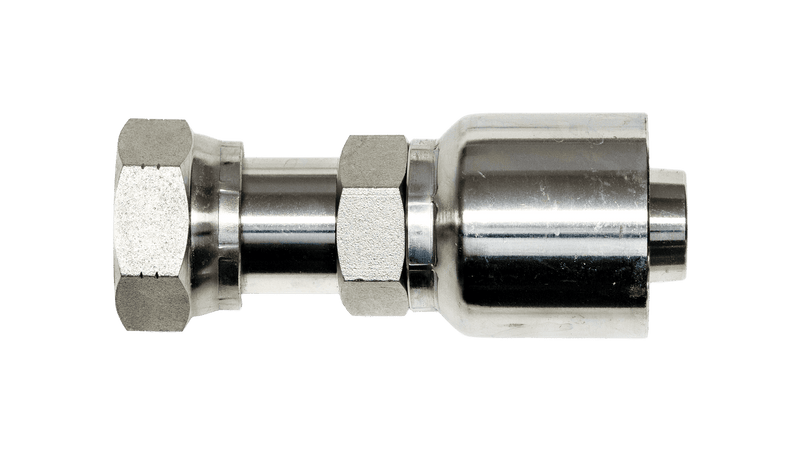

ORFS GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | THREAD | HOSE ID | A | B | H | W | |||
|---|---|---|---|---|---|---|---|---|---|
| INCH | INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 1JSGM-4-4 | 1/4" | 9/16 X 18 | 1/4" | 2.09 | 53 | 1.22 | 31 | 9/16 | 11/16 |
| 1JSGM-6-4 | 3/8" | 11/16 X 16 | 1/4" | 2.13 | 54 | 1.26 | 27 | 9/16 | 13/16 |
| 1JSGM-6-6 | 3/8" | 11/16 X 16 | 3/8" | 2.32 | 59 | 1.18 | 30 | 11/16 | 13/16 |
| 1JSGM-8-6 | 1/2" | 13/16 X 16 | 3/8" | 2.52 | 64 | 1.38 | 35 | 11/16 | 15/16 |
| 1JSGM-8-8 | 1/2" | 13/16 X 16 | 1/2" | 2.64 | 67 | 1.30 | 33 | 13/16 | 15/16 |
| 1JSGM-10-8 | 5/8" | 1 X 14 | 1/2" | 2.91 | 74 | 1.57 | 40 | 13/16 | 1-1/8 |
| 1JSGM-10-10 | 5/8" | 1 X 14 | 5/8" | 3.15 | 80 | 1.65 | 42 | 15/16 | 1-1/8 |
| 1JSGM-12-10 | 3/4" | 1-3/16" | 5/8" | 3.15 | 80 | 1.65 | 42 | 1-1/8 | 1-3/8 |
| 1JSGM-12-12 | 3/4" | 1-3/16" | 3/4" | 3.31 | 84 | 1.81 | 46 | 1-1/8 | 1-3/8 |
| 1JSGM-16-12 | 1 | 1-7/16 X 12 | 3/4" | 3.39 | 86 | 1.89 | 48 | 1-3/8 | 1-5/8 |
| 1JSGM-16-16 | 1 | 1-7/16 X 12 | 1" | 3.66 | 93 | 1.89 | 48 | 1-3/8 | 1-5/8 |
| 1JSGM-20-20 | 1-1/4 | 1-11/16 X 12 | 1-1/4" | 4.37 | 111 | 1.97 | 50 | 1-3/4 | 1-7/8 |
| 1JSGM-24-20 | 1-1/2 | 2 X 12 | 1-1/4" | 4.49 | 114 | 2.09 | 53 | 1-3/4 | 2-1/4 |
