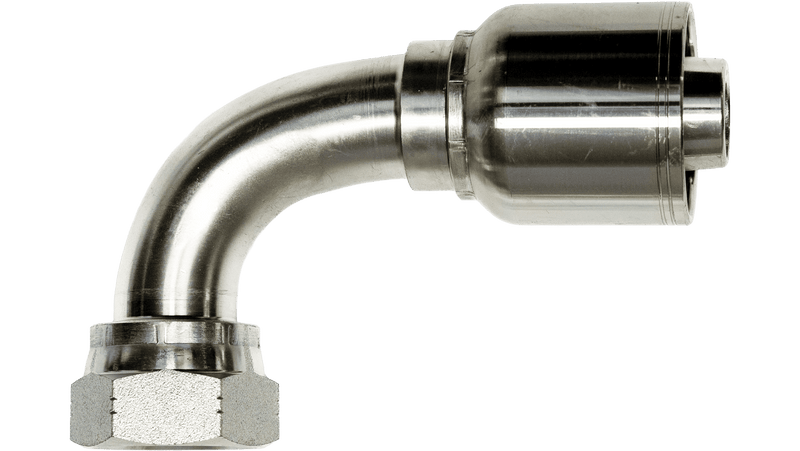

ORFS GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | THREAD | HOSE ID | A | B | E | W | |||
|---|---|---|---|---|---|---|---|---|---|
| INCH | INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 1J9MH-4-4 | 1/4" | 9/16 X 18 | 1/4" | 1.69 | 43 | 0.83 | 21 | 0.94 | 11/16 |
| 1J9MH-6-4 | 3/8" | 11/16 X 16 | 1/4" | 1.69 | 43 | 0.83 | 21 | 1.14 | 13/16 |
| 1J9GM-6-6 | 3/8" | 11/16 X 16 | 3/8" | 2.13 | 54 | 0.98 | 25 | 1.06 | 13/16 |
| 1J9GM-8-6 | 1/2" | 13/16 X 16 | 3/8" | 2.13 | 54 | 0.98 | 25 | 1.22 | 15/16 |
| 1J9GM-8-8 | 1/2" | 13/16 X 16 | 1/2" | 2.60 | 66 | 1.26 | 32 | 1.30 | 15/16 |
| 1J9GM-10-8 | 5/8" | 1 X 14 | 1/2" | 2.64 | 67 | 1.30 | 33 | 1.42 | 1-1/8 |
| 1J9GM-10-10 | 5/8" | 1 X 14 | 5/8" | 3.07 | 78 | 1.57 | 40 | 1.65 | 1-1/8 |
| 1J9GM-10-12 | 5/8" | 1 X 14 | 5/8" | 3.19 | 81 | 1.69 | 43 | 1.65 | 1-1/8 |
| 1J9HM-12-10 | 3/4" | 1-3/16" | 5/8" | 3.07 | 78 | 1.57 | 40 | 1.69 | 1-3/8 |
| 1J9GM-12-12 | 3/4" | 1-3/16" | 3/4" | 3.58 | 91 | 2.09 | 53 | 2.09 | 1-3/8 |
| 1J9GM-16-16 | 1-7/16" | 1-7/16 X 12 | 1" | 4.41 | 112 | 2.64 | 67 | 2.44 | 1-5/8 |
| 1J9GM-20-20 | 1-11/16" | 1-11/16 X 12 | 1-1/4" | 5.43 | 138 | 3.03 | 77 | 2.76 | 1-7/8 |
| 1J9GM-24-24 | 2 | 2 X 12 | 1-1/2" | 6.73 | 171 | 4.21 | 107 | 3.66 | 2-1/4 |
