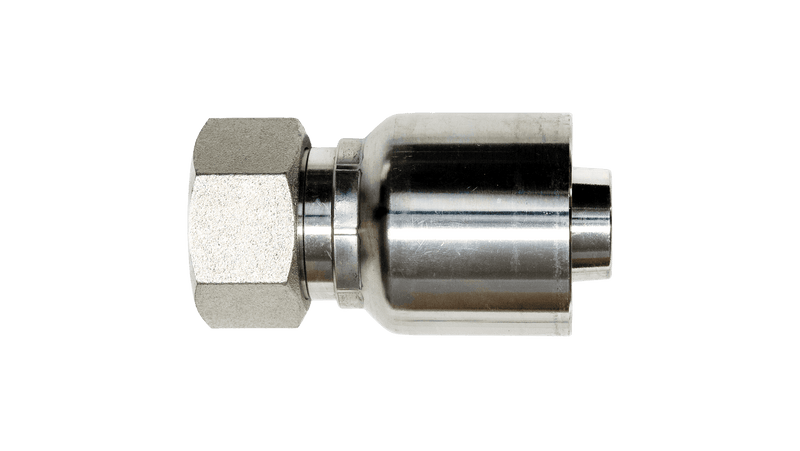

METRIC GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | THREAD | HOSE ID | A | B | C | W | |||
|---|---|---|---|---|---|---|---|---|---|
| INCH | INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 1CAGM-6-4 | 6 | M12X1.5 | 1/4" | 1.73 | 44 | 0.88 | 22 | -0.02 | 14 |
| 1CAGM-8-4 | 8 | M12 X 1.5 | 1/4" | 1.65 | 42 | 0.79 | 17 | 0.01 | 14 |
| 1CAGM-10-4 | 10 | M16 X 1.5 | 1/4" | 1.69 | 43 | 0.83 | 21 | 0.04 | 19 |
| 1CAGM-10-6 | 10 | M16 X 1.5 | 3/8" | 2.09 | 53 | 0.94 | 24 | 0.02 | 19 |
| 1CAGM-12-6 | 12 | M18 X 1.5 | 3/8" | 1.97 | 50 | 0.83 | 22 | 0.03 | 22 |
| 1CAGM-12-8 | 12 | M18 X 1.5 | 1/2" | 2.17 | 55 | 0.83 | 21 | 0.07 | 27 |
| 1CAGM-15-6 | 15 | M22 X 1.5 | 3/8" | 1.97 | 50 | 0.83 | 22 | 0.03 | 22 |
| 1CAGM-15-8 | 15 | M22 X 1.5 | 1/2" | 2.17 | 55 | 0.83 | 21 | 0.07 | 27 |
| 1CAGM-18-8 | 18 | M26 X 1.5 | 1/2" | 2.28 | 58 | 0.94 | 24 | 0.02 | 32 |
| 1CAGM-22-12 | 22 | M30 X 2 | 3/4" | 2.52 | 64 | 1.02 | 26 | 0.13 | 36 |
| 1CAGM-28-12 | 28 | M36 X 2 | 3/4" | 2.52 | 64 | 1.02 | 26 | 0.13 | 36 |
| 1CAGM-28-16 | 28 | M36 X 2 | 1" | 2.87 | 73 | 1.10 | 28 | 0.14 | 41 |
