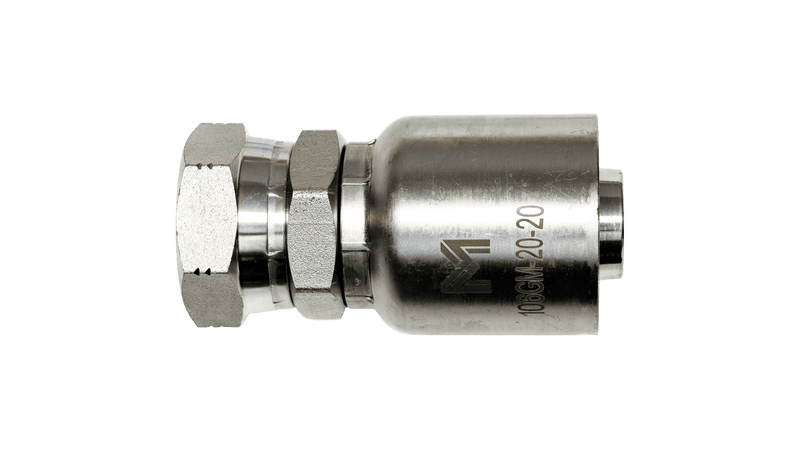

JIC GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| Part Number | Thread | HOSE ID | A | B | H | W | |||
|---|---|---|---|---|---|---|---|---|---|
| INCH | INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 106GM 4-4 | 1/4" | 7/16 X 20 | 1/4" | 1.94 | 49 | 1.19 | 30 | 9/16" | 9/16" |
| 106GM 4-6 | 1/4" | 7/16 X 20 | 3/8" | 2.28 | 58 | 1.14 | 29 | 11/16" | 9/16" |
| 106GM 5-4 | 5/16" | 1/2 X 20 | 1/4" | 2.36 | 60 | 1.18 | 30 | 9/16" | 5/8" |
| 106GM 5-6 | 5/16" | 1/2 X 20 | 3/8" | 2.32 | 59 | 1.18 | 30 | 11/16" | 5/8" |
| 106GM 6-4 | 9/16" | 9/16 X 18 | 1/4" | 2.09 | 53 | 1.22 | 31 | 9/16" | 11/16" |
| 106GM 6-5 | 9/16" | 9/16 X 18 | 5/16" | 2.10 | 53 | 1.35 | 34 | 11/16" | 11/16" |
| 106GM 6-6 | 9/16" | 9/16 X 18 | 3/8" | 2.36 | 60 | 1.22 | 31 | 11/16" | 11/16" |
| 106GM 6-8 | 9/16" | 9/16 X 18 | 1/2" | 2.56 | 65 | 1.22 | 31 | 13/16" | 11/16" |
| 106GM 8-6 | 1/2" | 3/4 X 16 | 3/8" | 2.68 | 68 | 1.34 | 34 | 11/16" | 7/8" |
| 106GM 8-8 | 1/2" | 3/4 X 16 | 1/2" | 2.64 | 67 | 1.30 | 33 | 13/16" | 7/8" |
| 106GM 8-10 | 1/2" | 3/4 X 16 | 5/8" | 2.91 | 74 | 1.42 | 36 | 15/16" | 7/8" |
| 106GM 8-12 | 1/2" | 3/4 X 16 | 3/4" | 3.03 | 77 | 1.54 | 39 | 1-1/16" | 7/8" |
| 106GM 10-6 | 5/8" | 7/8 X 14 | 3/8" | 2.56 | 65 | 1.42 | 36 | 7/8" | 1 |
| 106GM 10-8 | 5/8" | 7/8 X 14 | 1/2" | 2.44 | 62 | 1.50 | 38 | 7/8" | 1 |
| 106GM 10-10 | 5/8" | 7/8 X 14 | 5/8" | 2.99 | 76 | 1.50 | 38 | 15/16" | 1 |
| 106GM 10-12 | 5/8" | 7/8 X 14 | 3/4" | 3.11 | 79 | 1.61 | 41 | 1-1/16" | 1 |
| 106GM 12-8 | 3/4" | 1-1/16 X 12 | 1/2" | 3.03 | 77 | 1.69 | 43 | 1-1/16" | 1-1/4" |
| 106GM 12-10 | 3/4" | 1-1/16 X 12 | 5/8" | 3.23 | 82 | 1.73 | 44 | 1-1/16" | 1-1/4" |
| 106GM 12-12 | 3/4" | 1-1/16 X 12 | 3/4" | 3.27 | 83 | 1.77 | 45 | 1-1/16" | 1-1/4" |
| 106GM 12-16 | 3/4" | 1-1/16 X 12 | 1" | 3.62 | 92 | 1.85 | 47 | 1-3/8" | 1-1/4" |
| 106GM 14-12 | 7/8" | 1-3/16 X 12 | 3/4" | 3.18 | 81 | 1.74 | 44 | 1-1/4" | 1-3/8" |
| 106GM 16-12 | 1" | 1-5/16 X 12 | 3/4" | 3.35 | 85 | 1.85 | 47 | 1-1/4" | 1-1/2" |
| 106GM 16-16 | 1" | 1-5/16 X 12 | 1" | 3.70 | 94 | 1.93 | 49 | 1-3/8" | 1-1/2" |
| 106GM 16-20 | 1" | 1-5/16 X 12 | 1-1/4" | 4.53 | 115 | 2.13 | 54 | 1-7/8" | 2 |
| 106GM 20-16 | 1" | 1-5/16 X 12 | 1" | 3.86 | 98 | 2.09 | 53 | 1-5/8" | 2 |
| 106GM 20-20 | 1-1/4" | 1-5/8 X 12 | 1-1/4" | 4.53 | 115 | 2.13 | 54 | 1-7/8" | 2 |
| 106GM 24-20 | 1-1/2" | 1-7/8 X 12 | 1-1/4" | 4.53 | 115 | 2.13 | 54 | 1-7/8" | 2 |
| 106GM 24-24 | 1-1/2" | 1-7/8 X 12 | 1-1/2" | 4.88 | 124 | 2.36 | 60 | 2-1/8" | 2-1/4" |
| 106GM 32-32 | 2" | 2-1/1 X 12 | 2" | 5.43 | 138 | 2.87 | 73 | 2-1/2" | 2-7/8" |
