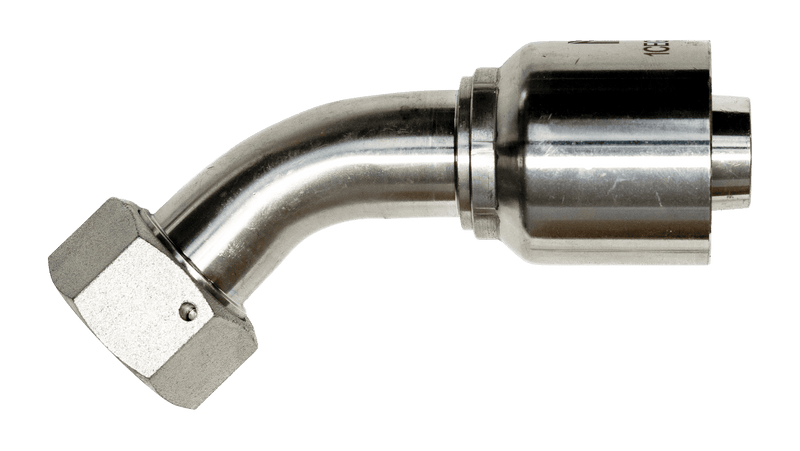

METRIC GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | THREAD | HOSE ID | A | B | E | W | |||
|---|---|---|---|---|---|---|---|---|---|
| INCH | INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 1CEGM-6-4 | 6 | M12X1.5 | 1/4" | 2.68 | 68 | 1.77 | 45 | 0.75 | 14 |
| 1CEGM-8-4 | 8 | M12 X 1.5 | 1/4" | 2.32 | 59 | 1.46 | 37 | 0.75 | 17 |
| 1CEGM-10-4 | 10 | M16 X 1.5 | 1/4" | 2.68 | 68 | 1.77 | 45 | 0.75 | 14 |
| 1CEGM-10-6 | 10 | M16 X 1.5 | 3/8" | 2.95 | 75 | 1.81 | 46 | 0.91 | 23 |
| 1CEGM-12-6 | 12 | M18 X 1.5 | 3/8" | 2.91 | 74 | 1.77 | 45 | 0.87 | 22 |
| 1CEGM-15-8 | 15 | M22 X 1.5 | 1/2" | 3.50 | 89 | 2.17 | 55 | 1.06 | 27 |
| 1CEGM-18-6 | 18 | M26 X 1.5 | 3/8" | 2.91 | 74 | 1.77 | 45 | 0.87 | 22 |
| 1CEGM-18-8 | 18 | M26 X 1.5 | 1/2" | 3.50 | 89 | 2.17 | 55 | 1.06 | 27 |
| 1CEGM-18-10 | 18 | m26x1.5 | 5/8" | 3.5 | 89 | 1.93 | 49 | 0.91 | 32 |
| 1CEGM-22-12 | 22 | M30 X 2 | 3/4" | 4.45 | 113 | 2.95 | 75 | 1.38 | 36 |
| 1CEGM-28-16 | 28 | M36 X 2 | 1" | 4.92 | 125 | 3.35 | 85 | 1.34 | 41 |
