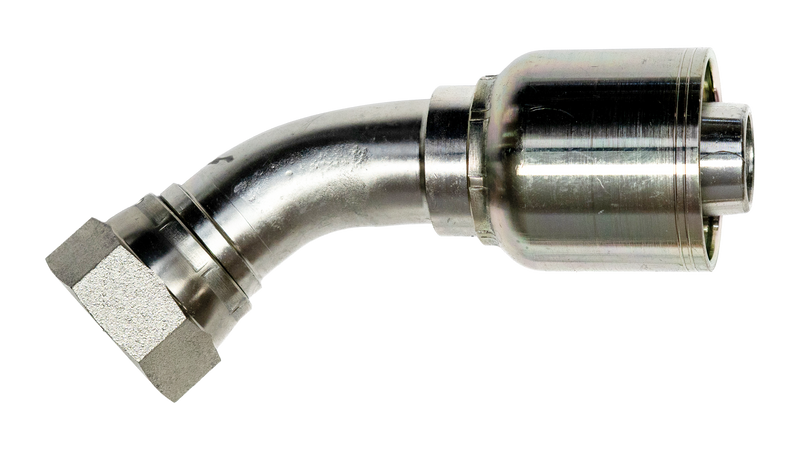

JIC GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| Part Number | Thread | HOSE ID | A | B | E | W | |||
|---|---|---|---|---|---|---|---|---|---|
| INCH | INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 137GM 4-4 | 1/4" | 7/16 X 20 | 1/4" | 1.93 | 49 | 1.06 | 27 | 0.47 | 9/16" |
| 137GM 6-4 | 3/8" | 9/16 X 18 | 1/4" | 1.97 | 50 | 1.10 | 28 | 0.47 | 11/16" |
| 137GM 6-6 | 3/8" | 9/16 X 18 | 3/8" | 2.39 | 61 | 1.26 | 32 | 0.51 | 11/16" |
| 137GM 8-6 | 1/2" | 3/4 X 16 | 3/8" | 2.48 | 63 | 1.34 | 34 | 0.59 | 7/8" |
| 137GM 8-8 | 1/2" | 3/4 X 16 | 1/2" | 2.91 | 74 | 1.57 | 40 | 0.67 | 7/8" |
| 137GM 10-8 | 5/8" | 7/8 X 14 | 1/2" | 2.95 | 75 | 1.61 | 41 | 0.71 | 1" |
| 137GM 10-10 | 5/8" | 7/8 X 14 | 5/8" | 3.35 | 85 | 1.85 | 47 | 0.79 | 1" |
| 137GM 12-12 | 3/4" | 1-1/16 X 12 | 3/4" | 3.86 | 98 | 2.36 | 60 | 1.10 | 1-1/4" |
| 137GM 16-16 | 1" | 1-5/16 X 12 | 1" | 4.69 | 119 | 2.91 | 74 | 1.30 | 1-1/2" |
| 137GM 20-20 | 1-1/4" | 1-5/8 X 12 | 1-1/4" | 5.75 | 146 | 3.35 | 85 | 1.65 | 2-1/4" |
| 137GM 24-24 | 1-1/2" | 1-7/8 X 12 | 1-1/2" | 6.81 | 173 | 4.29 | 109 | 15/16" | 7/8" |
