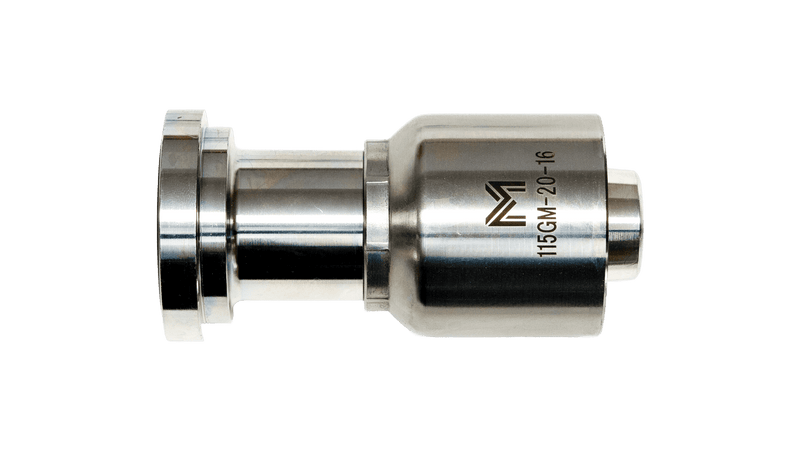

CODE 61 GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | FLANGE | HOSE ID | A | B | F | ||
|---|---|---|---|---|---|---|---|
| INCH | INCH | MM | INCH | MM | INCH | ||
| 115GM-8-8 | 1/2" | 1/2" | 3.46 | 88 | 2.13 | 54 | 1-3/16 |
| 115GM-12-8 | 3/4" | 1/2" | 3.66 | 93 | 2.32 | 59 | 1-1/2 |
| 115GM-12-12 | 3/4" | 3/4" | 3.54 | 90 | 2.05 | 52 | 1-1/2 |
| 115GM-16-12 | 1" | 3/4" | 2.80 | 71 | 1.30 | 33 | 1-3/4 |
| 115GM-16-16 | 1" | 1" | 4.21 | 107 | 2.44 | 62 | 1-3/4 |
| 115GM-20-16 | 1-1/4" | 1" | 3.78 | 96 | 2.01 | 51 | 2 |
| 115GM-20-20 | 1-1/4" | 1-1/4" | 5.31 | 135 | 2.91 | 74 | 2 |
| 115GM-24-20 | 1-1/2" | 1-1/4" | 5.08 | 135 | 2.68 | 68 | 2-3/8 |
| 115GM-24-24 | 1-1/2" | 1-1/2" | 5.31 | 135 | 2.80 | 71 | 2-3/8 |
| 115GM-32-24 | 2" | 1-1/2" | 5.94 | 151 | 3.43 | 87 | 2-7/8 |
| 115GM-32-32 | 2" | 2" | 5.94 | 151 | 3.35 | 85 | 2-13/16 |
